6767-91-80S1

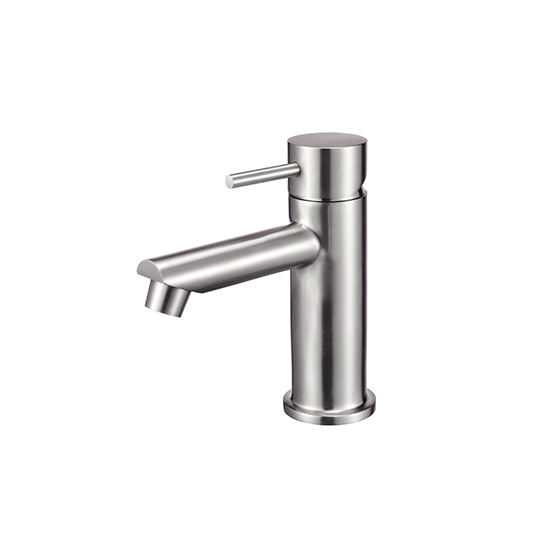

Basin Faucet (Stainless Steel)
Designed with conception of simple and beauty, without the multifarious lines, 6767 series meet the needs of the general public.
Color: Brushed
Share
Download
1.With brushed surface, the faucet is easy for cleaning.
2.Ceramic valve with CERAMTEC ceramic disc / (Germany)
3.Handle can be moved up to 25° to adjust water flow from closed position, hot and cold water control by swinging handle 45° both right and left.
4.Stainless steel braided hose with SANTOPRENE tube (meets NSF approval), can be stood 15Kg/cm2 water pressure and 120℃ heat.
5.Stainless steel braided hose with M10 × 1.0mm (Male thread connect to faucet body) and 1/2"-14NPSM (Female thread connect to water supplier system).
6.Aerator with removable flow restrictor (2.2 GPM max.), end-user can take off it for larger water flow if necessary.
Authorization Code
6767-91-80S1 SketchUp

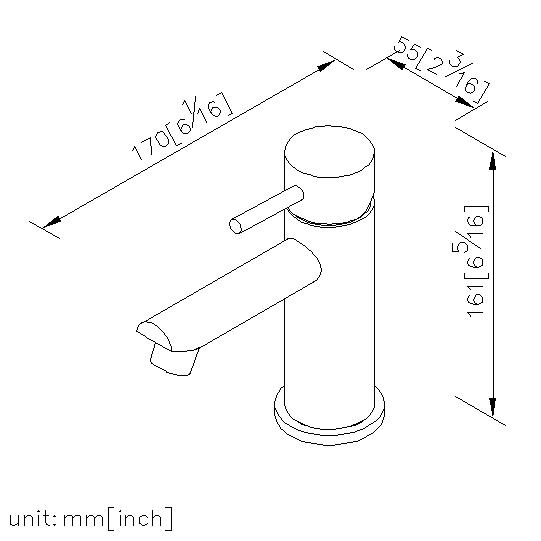

6767-91-80S1 CAD
