6790-90-81CP

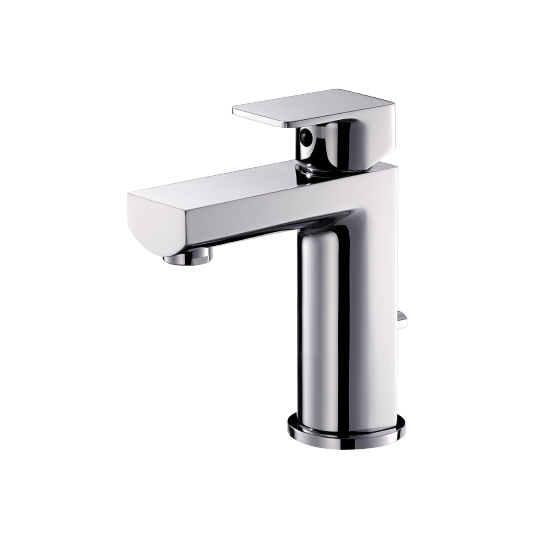

Basin Faucet W/Lift Rod
The design of Arch Series combines well-executed lines and smooth curves to come into the sharply contrastive but perfect visional impression to reveal beauty of mordent fashion and historical culture.
Color: Polished Chrome
Share
Download
1.Universal mold design which uses common parts and increase more convenient for maintained.
2.Ceramic valve with KOREA ceramic disc.
3.Handle can be moved up to 22° to adjust water flow from closed position; hot and cold water controlled by swinging handle for 45° both right and left sides.
4.Stainless steel braided hose with SANTOPRENE tube (meets NSF approval), can be stood 15Kg/cm2 water pressure and 120℃ heat.
5.Stainless steel braided hose with M10 x 1.0mm (Male thread connect to faucet body) and 1/2"-14NPSM (Female thread connect to water supplier system).
6.Aerator with removable flow restrictor (2.2 GPM max.), end-user can take off it for larger water flow if necessary.
7.Casting material meets ISO CuZn40Pb Standard.
8.Handle material meets JIS 3771 Standard.
9.Brass with Chrome plated, meet ASTM-SC2 standard.
Authorization Code
6790-90-81CP SketchUp
6790-90-81CP CAD
