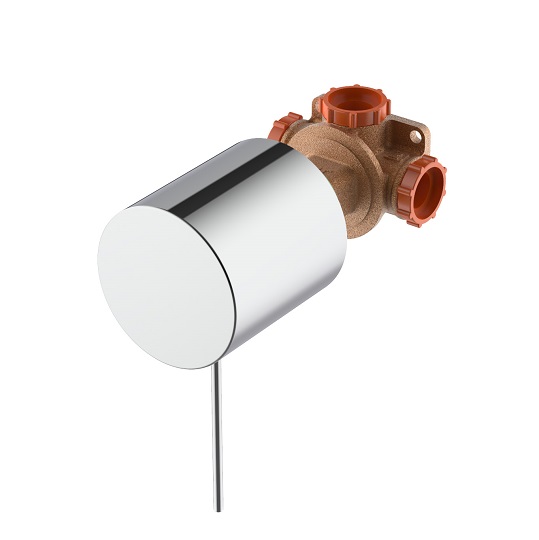

6777-XF-80CP
Single-Handle Concealed Valve (Upward Outlet)
To creat a comfortable bathroom space, we simplizes the idea of its interior design. We would like to present a tidy, functional, but not monotone or narrow shower space for users.
Therefore, modern designers have come up a "concealed" conception with bath fittings. By removing the exposed metal pipes, the interior space can be increased a lot, making the bathroom more hygienic and natural. Eventually, taking a shower would be pleased, rather than just functional.
Color: Polished Chrome
Share
Download
1.The mixing valve could be installed in the cemented and wood wall.

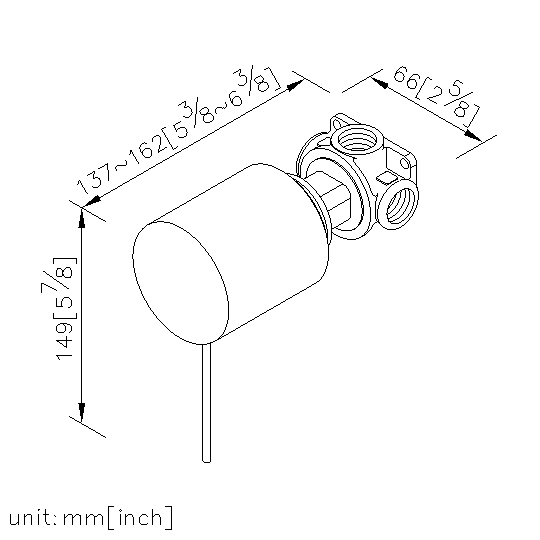

2.The burying depth of embedded body is between 2"(6cm)Min~3"(7.6cm)Max from the finished wall.
3.Handle can be moved up to 22° to adjust water flow from closed position; hot and cold water controlled by swinging handle for 45° both right and left sides.
4.Ceramic valve Past 500,000 times lifespan test.
5.G1/2 inlet.
6.The faucet should be used at the water presure from 1 to 6 kg/cm^2.
Authorization Code
6777-XF-80CP SketchUp
6777-XF-80CP CAD
