6790-N1-81CP

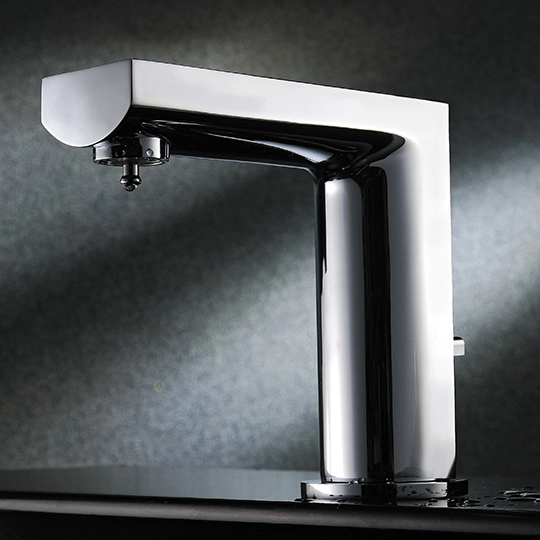

Tip-Touch Basin Faucet W/Mixing Valve & Lift Rod


The design of Arch Series combines well-executed lines and smooth curves to come into the sharply contrastive but perfect visional impression to reveal beauty of mordent fashion and historical culture.


Color: Polished Chrome

  • CP

Share

Download

6790-N1-81CP Overview

6790-N1-81CP Specification

6790-N1-81CP Installation


1.Universal mold design which uses common parts and increase more convenient for maintained.
2.Pressing the tip-touch aerator to control water flow.
3.Temperature pre-adjustable by the mixer valve.
4.The aerator is designed in Taiwan, passed multinational patents and water-saving of Taiwan.
5.Tip-touch aerator passes up to 200,000 times on-off life test. (Saving water, no handle valve and electric system).
6.The faucet can stand the presure from 0.5 to 5 kg/cm^2
7.Stainless steel braided hose with M10 x 1.0mm (Male thread connect to faucet body) and 1/2"-14NPSM (Female thread connect to water supply system).
8.Stainless steel braided hose with SANTOPRENE tube (meets NSF approval), can be stood 15Kg/cm2 water pressure and 120℃ heat.
9.Casting material meets ISO CuZn40Pb Standard
10.Material is Brass with Chrome plated and meets ASTM-SC2 standard.
