7779-XW-80CP

Concealed Valve W/Diverter & Check Valve W/O Inlet Stop Version(1~4 kg/cm^2)


Design Team created the Pan 2 Faucets with concise style, and integrated rectangular and circular lines into the shape design to fit for different basins easily and provide users various choices. Though it has just used the most basic geometric elements, the design team also varied the faucets to be special and bring the positive benefit for bathroom.
"Pan-," a combining form meaning "all." We are eager to hope all users would have chances to experience our high-quality products, and it could start from this Pan Series which has perfect harmony with various basins and bathroom designs.


Color: Polished Chrome

  • CP

Share

Download

7779-XW-80CP Overview

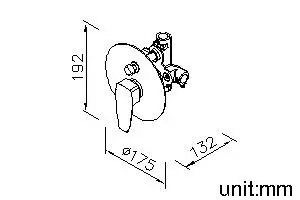

7779-XW-80CP Specification

7779-XW-80CP Installation-2

7779-XW-80CP Installation-1

7779-XW-80CP Exploded View


1.Chrome plated finish meets the standard of ASTM-SC2.
2.Justime finishes resist corrosion and tarnish.
3.The mixing valve could be installed in the cemented and wood wall. The burying depth of embedded body is between 2"(6cm)Min~3"(7.6cm)Max from the finished wall.
4.With replaceable check valve both behind hot and cold water 1/2" inlet. The valve can prevent counterflow.
5.Using the C-ring provided if the water pressure under 1kgf/cm2/(14.2PSI)
6.G1/2 inlet.
7.The faucet should be used at the water presure from 1 to 4 kg/cm^2.
8.Handle pasts 500,000 times lifespan test.
9.Coordinates with other products in Pan 2 collection.


Authorization Code

7779-XW-80CP SketchUp
