6765-XX-80P1

Concealed Valve W/Diverter & Check Valve W/O Inlet Stop Version(4~6 kg/cm^2)


The simple and generous design without unnecessary lines to increase the fashion style on the showeroom. The special material of the handle has the speciality of skidproof and is easy to use.  Pressing the switch can adjust the outlet function. The specail design check valve can prevent cross-flow to reassure the users. The Single-Handle Concealed Valve not only save space in the shower-room but also increase aesthetic feeing to environment.


Color: Black Handle

  • P1

Share

Download

6765-XX-80P1 Overview

6765-XX-80P1 Specification

6765-XX-80P1 Installation


1.Brass of casting body meets ISO CuZn40Pb standard.
2.Premium metal construction for durability.
3.Justime finishes resist corrosion and tarnish.
4.Finish meets the standard of ASTM-SC2.

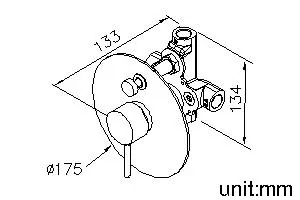

5.The burying depth of embedded body is between 2"(6cm)Min~3"(7.6cm)Max from the finished wall.
6.With replaceable check valve both behind hot and cold water 1/2" inlet. The valve can prevent counterflow, and make a high-level safety.
