Designed main body style as square shape, the aesthetics of symmetry exudes a stylish and charming atmosphere. With R angle processed, it soften the right angle of hard steel, and bring more soft and elegant atmosphere to a bathroom space.
Color: Polished Chrome
Share
Download
1.Chrome plated finish meets the standard of ASTM-SC2.
2.Material of forging handle meets JIS 3771 standard.
3.Faceplate material is stainless steel SUS304.
4.Inlet thread G 1/2.
5.The faucet should be used at the water presure from 4 to 6 kg/cm^2.

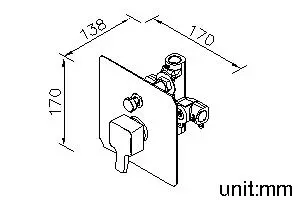

6.The burying depth of embedded body is between 2"(6cm) Min ~ 3"(7.6cm) Max from the finished wall.
7.The mixing valve could be installed in the cemented and wooden wall.
8.With replaceable check valve assembled in the bottom of the cartridge to prevent the water from flowing back.
7909-XZ-80CP SketchUp
