6781-XW-80CP
Concealed Valve W/Diverter & Check Valve W/O Inlet Stop Version(1~4 kg/cm^2)
Overall concept of ETHER Series Faucet is based on the idea of illimitable space outside of sky, and it has also been mentioned by philosophers of Greek and China Taoism. The smooth lines and dim imagine are like aurora on ether and current in deep ocean. The unique design of ETHER breaks so-called shape and brings faucet to artistic decoration level.
Color: Polished Chrome
Share
Download
Using the C-ring provided if the water pressure under 1kgf/cm2/(14.2PSI)。
SC2 standard of ASTM
G1/2 inlet.
With replaceable check valve both behind hot and cold water 1/2" inlet.
The faucet should be used at the water presure from 1 to 4 kg/cm^2.
Handle can be moved up to 25° to adjust water flow rate from closed position, hot and cold water controlled by swinging handle for 45° both right and left sides.

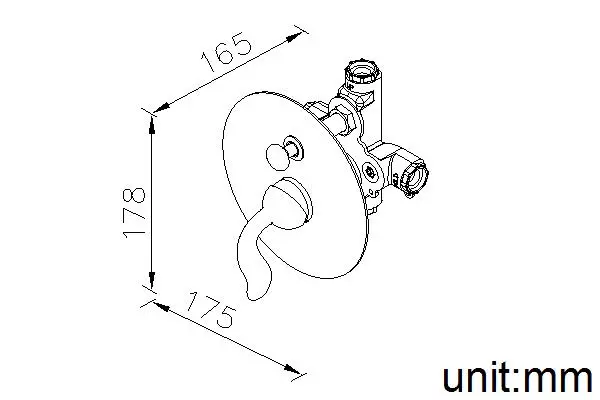

The burying depth of embedded body is between 2"(6cm)Min~3"(7.6cm)Max from the finished wall.
Authorization Code
6781-XW-80CP SketchUp
