6777-X3-81MA

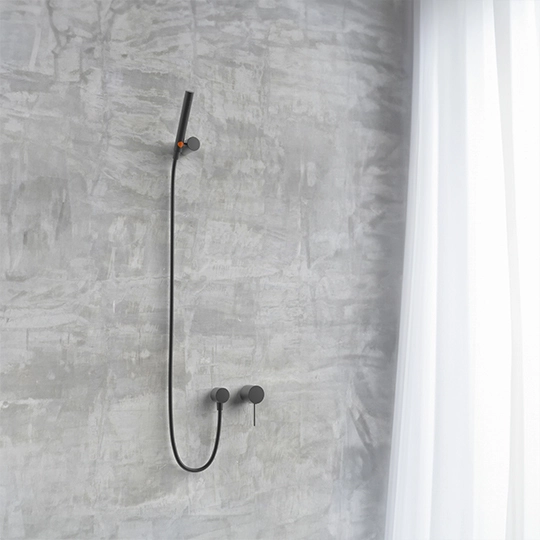

Built-In Shower Mixer


Seed is the fountainhead of all creation, but not all seeds are lucky to sprout and then grow up, so each budding seed is the symbol of hope and happiness. Moreover, spout of “Lucky 7”is like growing stalk to present various styles as creative ideas of designers.
Succinct pillared shape design simplified lines of spout and handle for not only presenting complete figure to be brief and elegant, but also decreasing time and cost of production.
Handle has been designed to operate easily in wet or slippery conditions.


Color: Matt black

  • CP
  • MA

Share

Download

6777-X3-81MA Overview

6777-X3-81MA Specification

6777-X3-81MA Installation

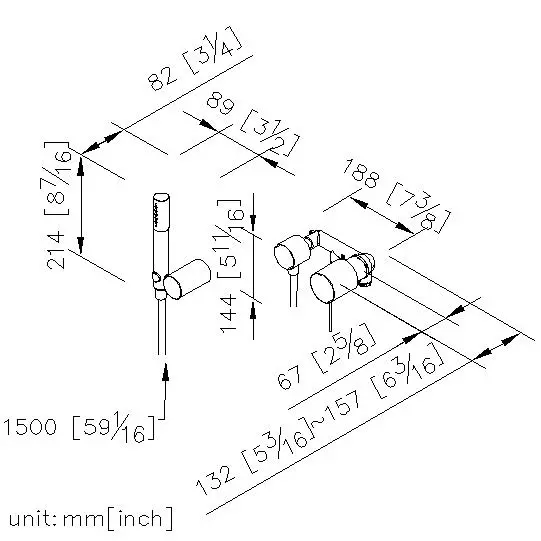

6777-X3-81MA Exploded View


1.Material of forging body and handle meets JIS 3771 standard.
2.The mixing valve could be installed in the cemented and wood wall.
3.The burying depth of embedded body is between 2"(6cm)Min~3"(7.6cm)Max from the finished wall.
4.The faucet can stand the presure from 0.5 to 5 kg/cm^2
5.Easy to install and disassemble for replace the components.
6.1.5 meter elastic shower hose can be extended.
7.Stainless steel braided hose with SANTOPRENE tube (meets NSF approval), can be stood 10 Kg/cm2 water pressure and 120℃ heat.
8.Shower hose with TPE flexible tube, can stand 10Kg/cm2 water pressure and 70℃ heat.
9.Lifespan of holder fastener up to 10,000 swivels test
