6310-60-80MA

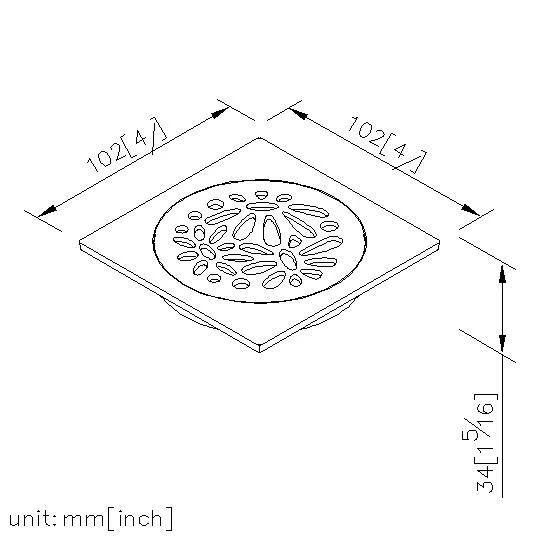

Floor Drain 100*100mm (Thin Version)


For solving the drainage problem caused by the core and body height, JUSTIME Design Team decreased height of body and core for getting more space of drainage and increasing the draining flow rate. Core of Floor Drain has been designed to close and seal when there is no water drain out, and it could also stop bugs and bad smell come out from the drain pipe. Floor drain has combined with 127 holes stainless steel filter to prevent obstruction, keep the smooth function of drainage and also increase the lifespan time of core.
Face plates of Floor Drain have been designed with geometric rectangular figure and irregular water drop figure, combine with different finish treatments, floor drains would be easy to integrate into floor tiles design and prettify bathing spaces.


Color: Matt black

  • AB
  • CP
  • KG
  • MA
  • PK

Share

Download

6310-60-80MA Overview

6310-60-80MA Specification

6310-60-80MA Installation


1. Material: Brass.
2.Material of Grid: Stainless Steel SUS304.
3.Fit for GB/T 27710-2011 standard, drainage rate≧9.6L/min.
4.Drain core could prevent bugs, bad smells, and backflows.
5.Material of Drain Core: ABS.
