6909-BD-80CP

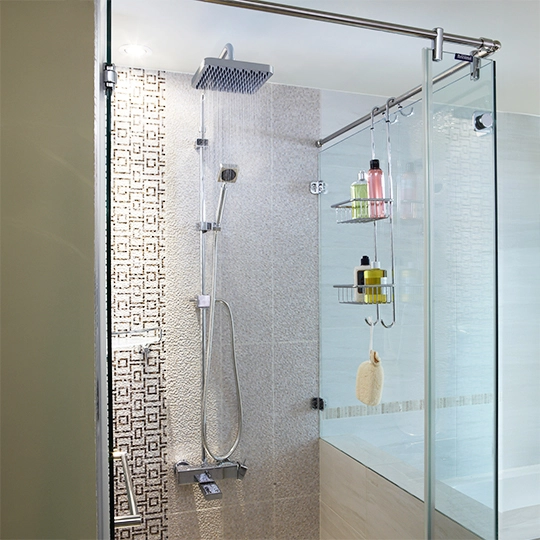

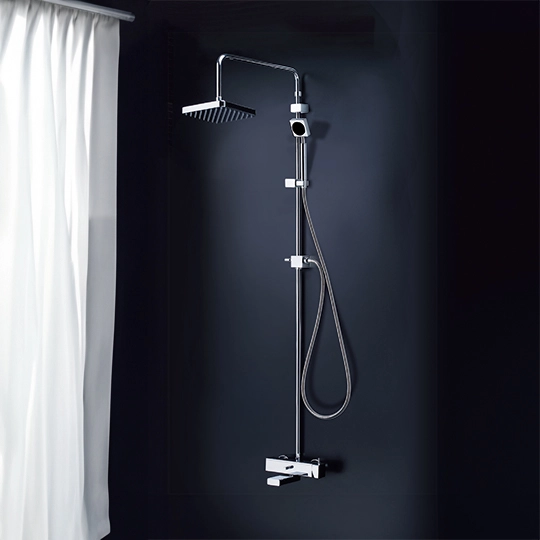

Bath/Rainshower System


Designed main body style as square shape, the aesthetics of symmetry exudes a stylish and charming atmosphere. With R angle processed, it soften the right angle of hard steel, and bring more soft and elegant atmosphere to a bathroom space.


Color: Polished Chrome

  • CP

Share

Download

6909-BD-80CP Specification

6909-BD-80CP Installation


1.The spray head of hand shower can be removed easily by easy-tool provided for cleaning。
2.Moving holder and hand shower for using.
3.The swiveling shower arm could be adjusted for the different spray position within available range.
4.Swiveling bath spout can save space while using bath tub.
5.Special Rain Shower, no remnant dropping while the user shut off the Mixer.
6.Handle can be moved up to 25° to adjust water flow from closed position, hot and cold water controlled by swinging handle for 45° both right and left sides.
7.Elastic shower hose can be extended from 1.5 meter to 2 meter and stand 15Kg/cm2 water pressure.

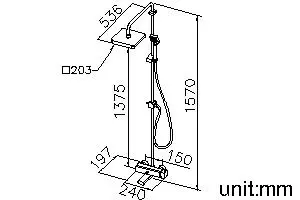

8.The available distance between two centers of wall water-outlet is 122mm to 178mm.
9.Ceramic valve with KOREA ceramic disc.
10.With R 1/2 to water supply wall outlet.
11.Brass with Chrome plated meets ASTM-SC2 standard.
12.Sand-casting material meets ISO CuZn40Pb Standard.
13.Handle material meets JIS 3771 Standard.


Authorization Code

6909-BD-80CP SketchUp
