6777-90-80CP

Basin Faucet

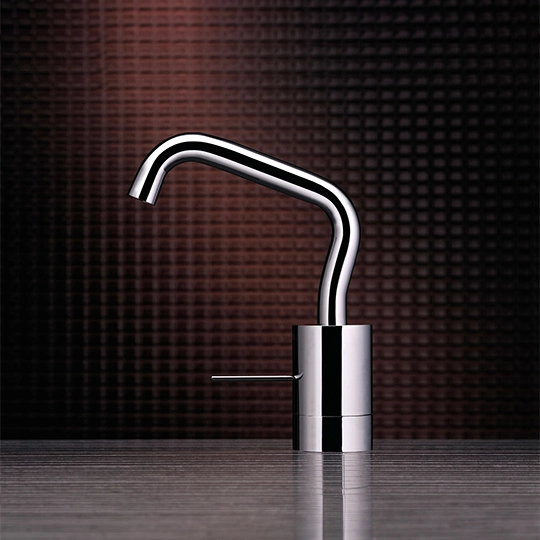

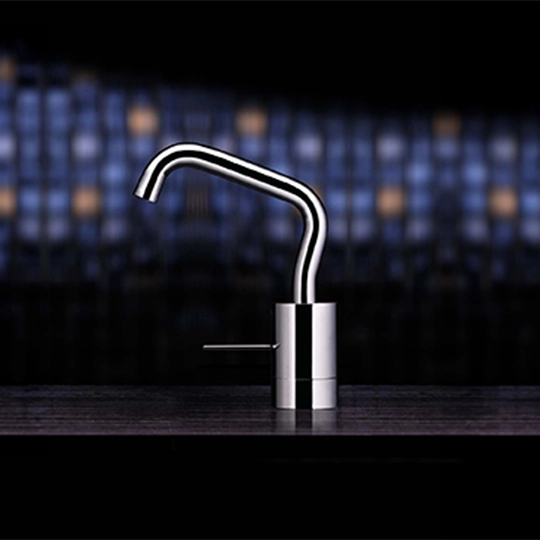

The seed is the fountainhead of all the creation, but not all of seeds will be lucky to sprout and then grow up, so each budding seed is the symbol of hope and happiness. The spout of "Lucky Seven" Series Faucet looks like the growing stalk and the curved shape is like the lucky numeral-7; flowing water looks like the passing petals, both of them remind us to treasure the precious water resource. "Lucky Seven" series faucet could not only decorate the living space, but also bring good luck and create hopes for people to collect happiness.



Color: Polished Chrome

  • CP

Share

Download

6777-90-80CP Overview

6777-90-80CP Specification

6777-90-80CP Installation


1.Spout can be rotated for 360 degrees and adjusted slightly for different needs. Swiveling spout has passed up to 50,000 turns test).
2.With the special internal structure and cylindrical outlook, these designs can reduce the filth and complex lines.
3.Concealed aerator flow restrictor (2.2 GPM max.).
4.Handle can be moved up to 22° to adjust water flow from closed position; hot and cold water controlled by swinging handle for 45° both right and left sides.
5.Stainless steel braided hose with M10 x 1.0mm (Male thread connect to faucet body) and 1/2"-14NPSM (Female thread connect to water supply system).
6.Ceramic valve with CERAMTEC ceramic disc / (Germany)
7.Brass with Chrome plated meets ASTM-SC2 standard.
8.Spout material meets JIS C2700 Standard
9.Faucet body material meets JIS 3771 Standard
